FEATURES

conexxwesi Containers uses Janus International 1000 Series roll-up doors as well as 2500 series roll doors.

The Janus International Model 1000 commercial sheet metal door provides tremendous value. Many components are pre-assembled and are made of high quality materials. Brackets, gears, chains, and a tensioner are all in place, which makes this door a solid investment for commercial or industrial applications. General and more specific features of the door can be found below:

• A drum wheel that is 9 ½” in diameter
• Maximum opening size of 12’ wide

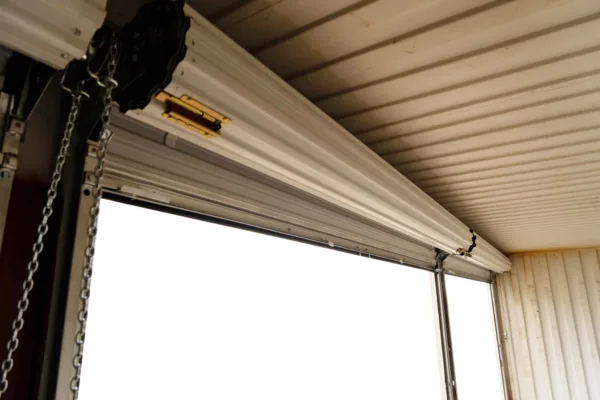

• A reduced, right hand only chain hoist
• Push-up, hand chain and internal electric operations (sold separately)

Curtain

• Grade 80 steel
• 26-gauge galvanized corrugated steel
• Wash coat over primer interior side
• Super Durable Polyester paint coatings, which are corrosion-resistant
• 40-year film integrity warranty — up to 30-year chalk and fade (from Manufacturer)
• Flexible nylon wear strips

Axle/Torque Tube

• Oil tempered torsion springs conforming to ASTM A229
• Low friction, grease-filled steel ball bearings staked in each drum
• 18-gauge, 9 ½” diameter galvanized drum
• 26 gauge spiral torque tubing that houses axle assembly

Guide

• Vinyl guide wear strip
• 16 gauge galvanized
• Bolt on head stop ¼” thick steel
• Pre-punched for lock
• 2 ¼” guide depth
• Universal jamb mount

Hardware

• Bottom bar mounted 12 gauge slide locks – 2 per door
• Bottom bar mounted 16 gauge step plate – 2 per door
• 12 gauge door mounting brackets

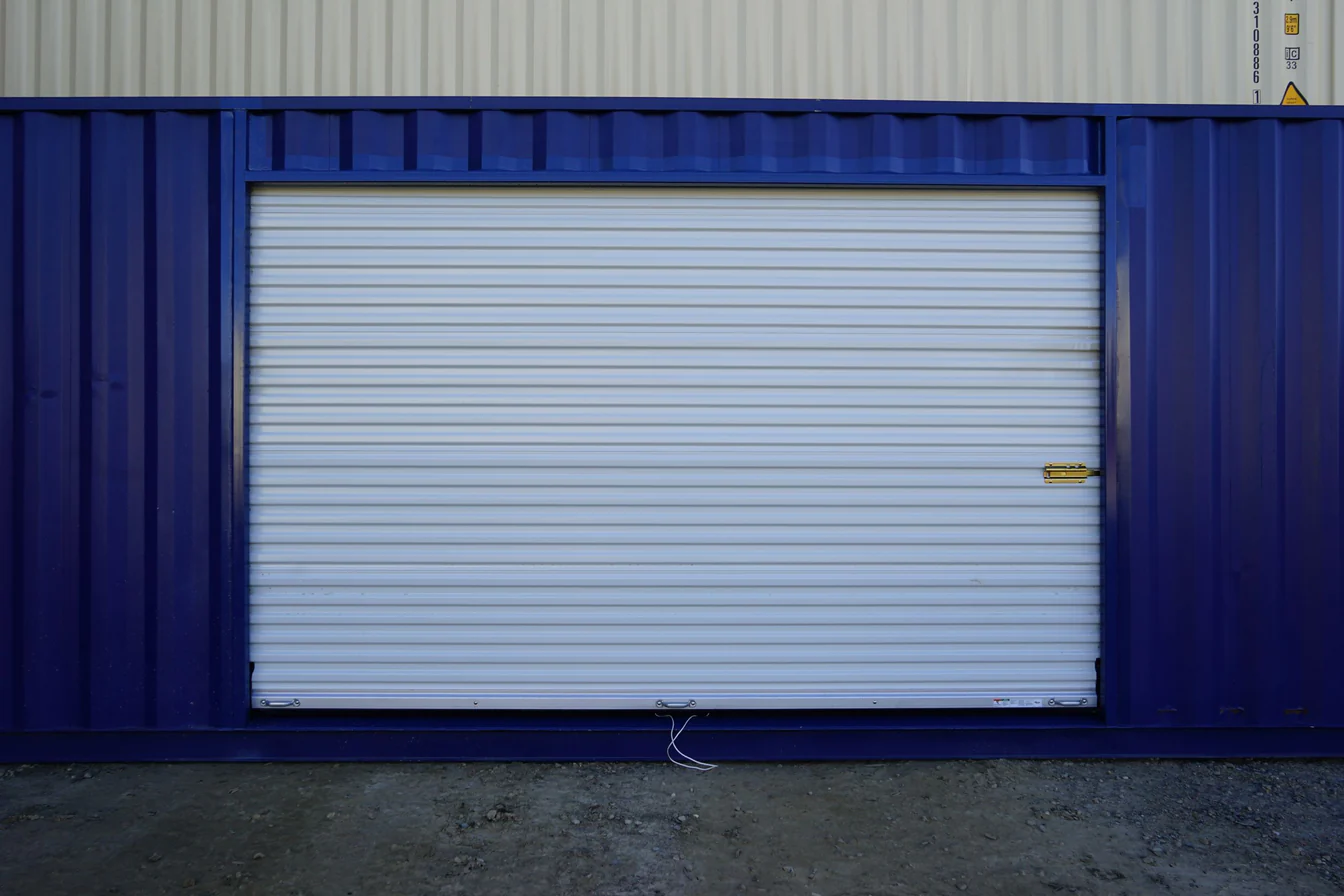

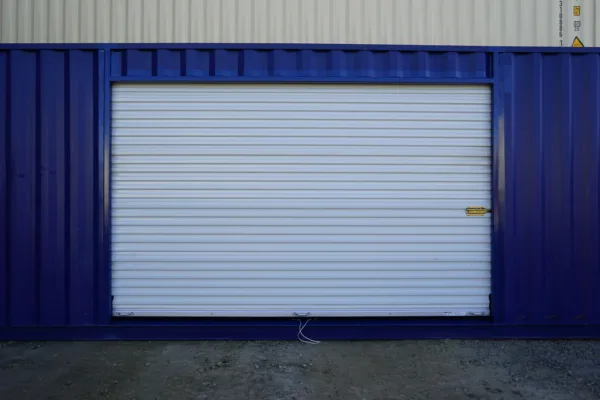

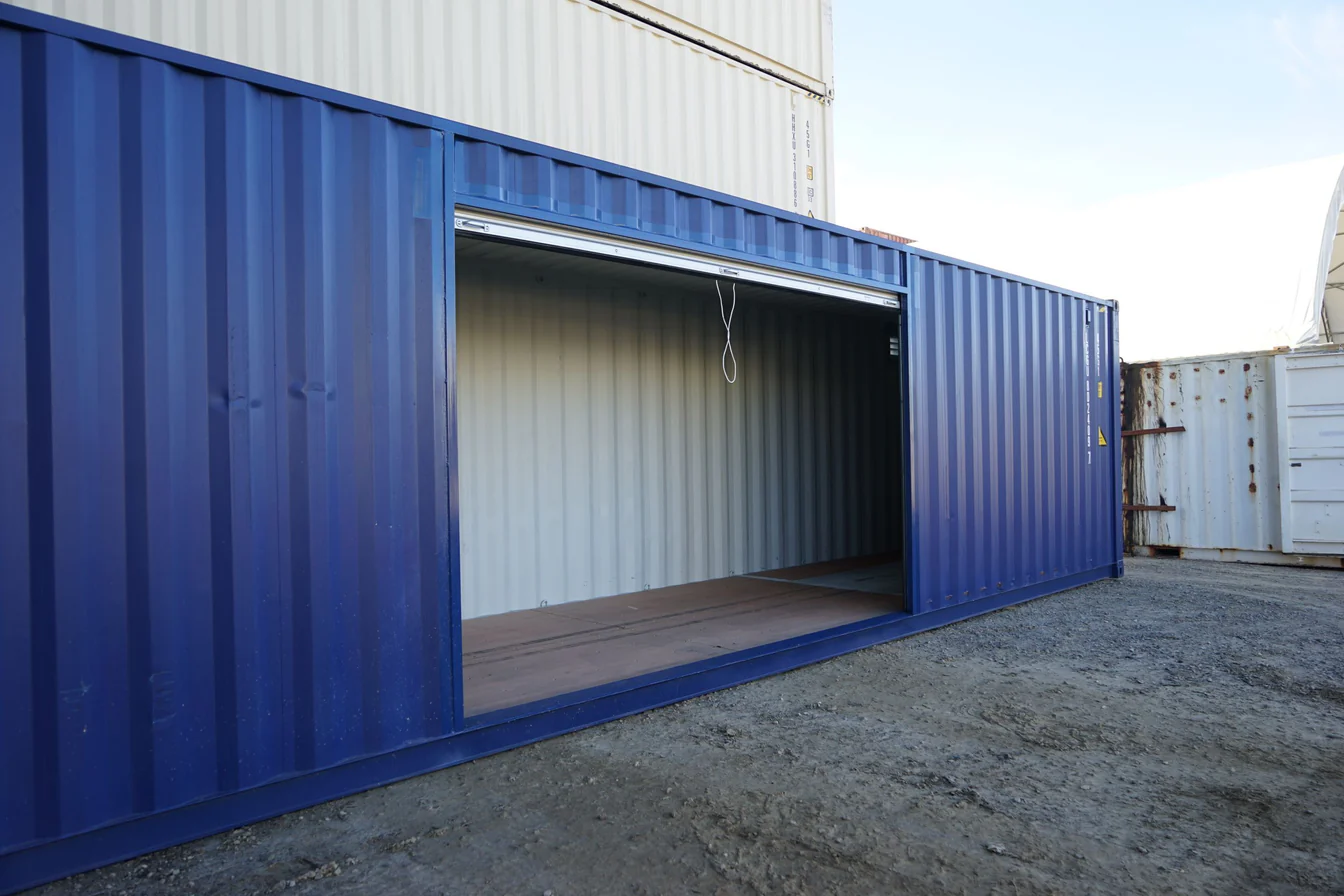

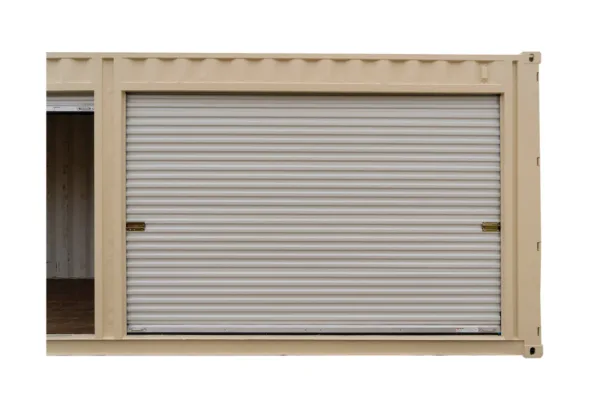

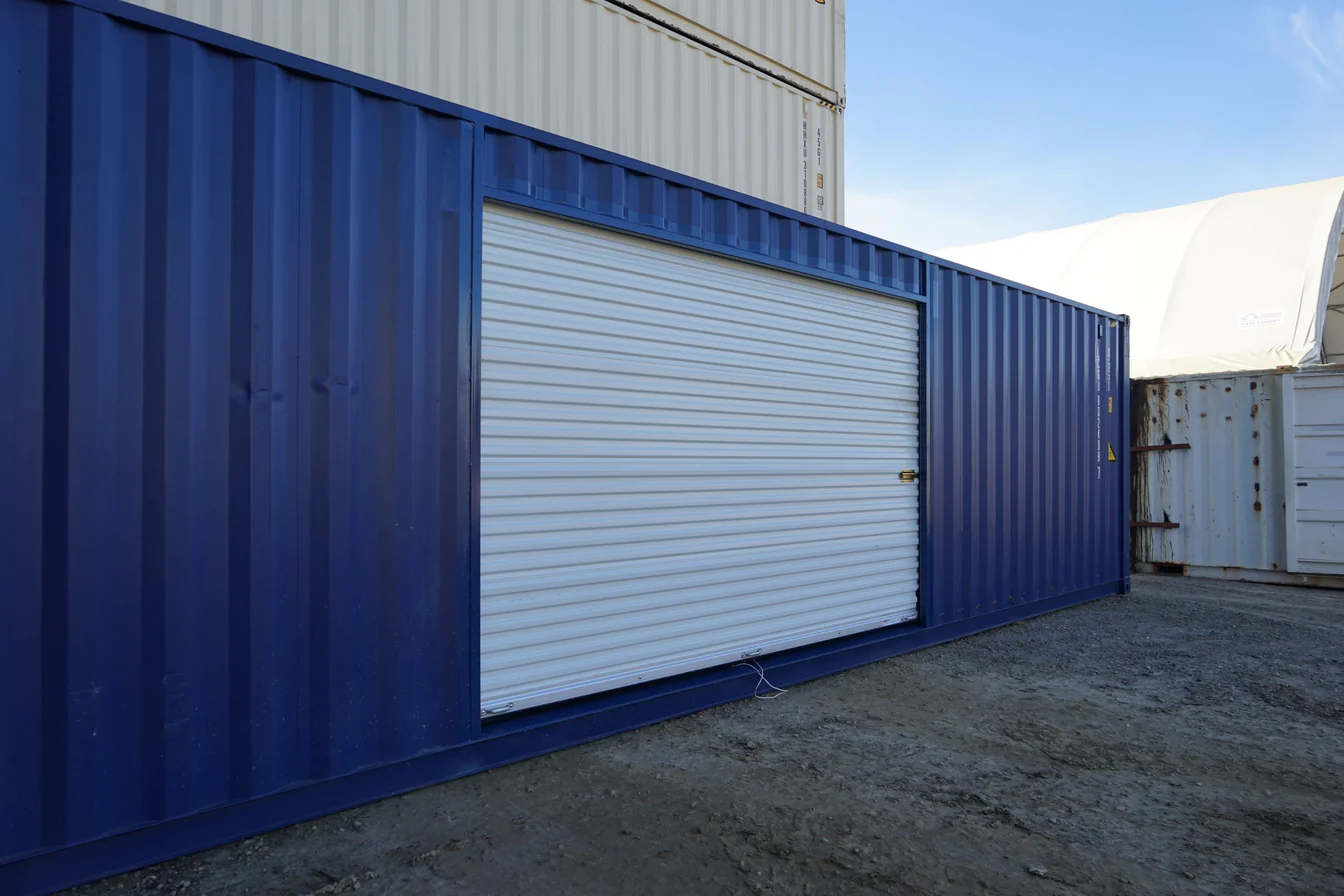

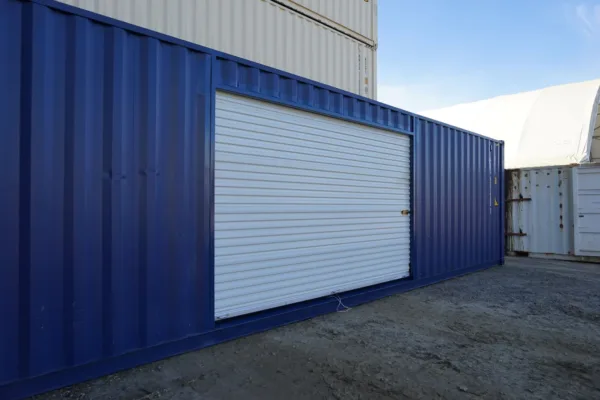

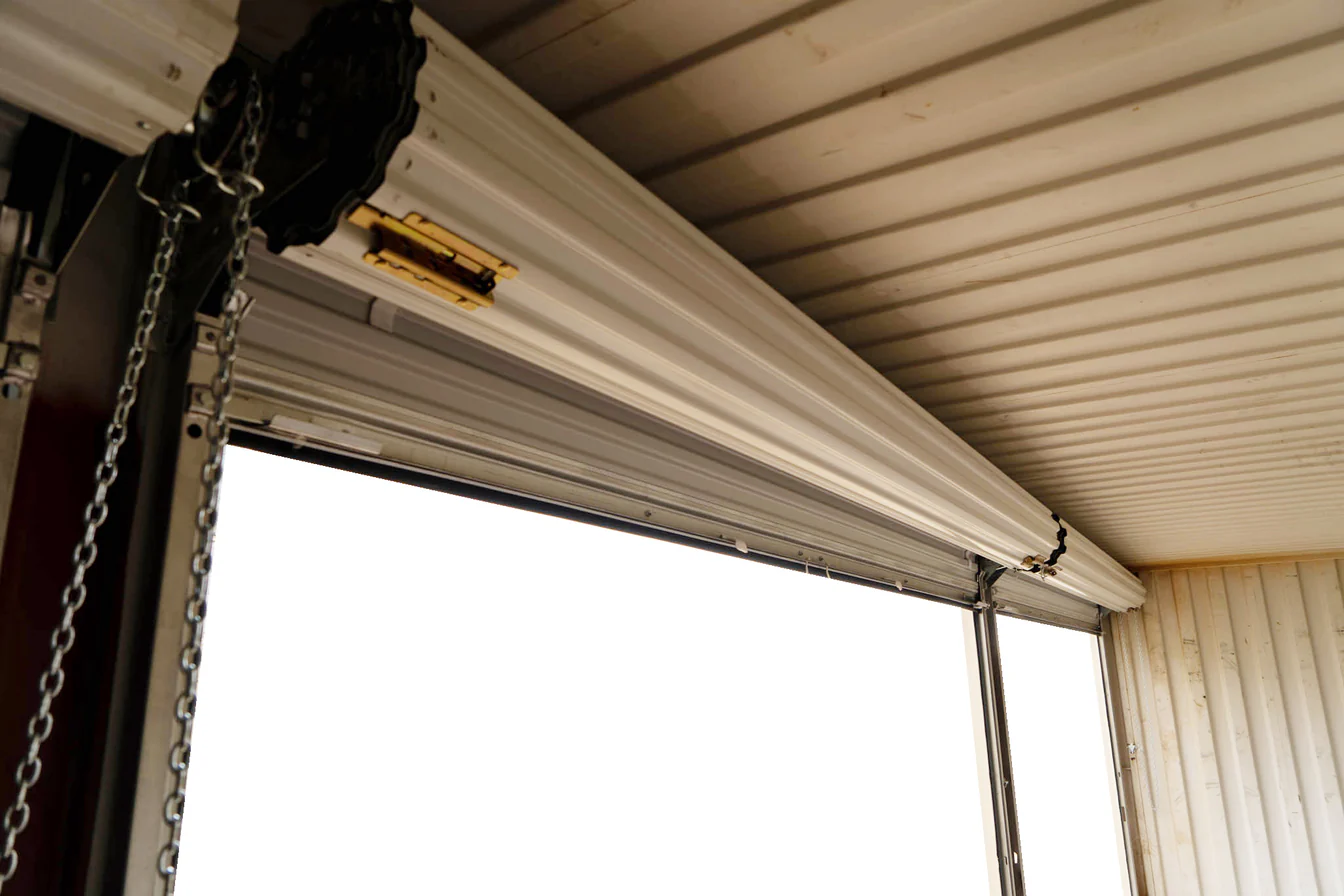

• Roll up doors are one of our most common modifications. These garage-style doors allow for quick and easy access on any side of your container, come in lengths of 3’6″, 4′, 6′, 8′, 10′ and 12′ wide (6′ and 8′ are the most common, thus installed in the quickest time frame), and are great when installed opposite the swing doors giving you access from both ends of the container.

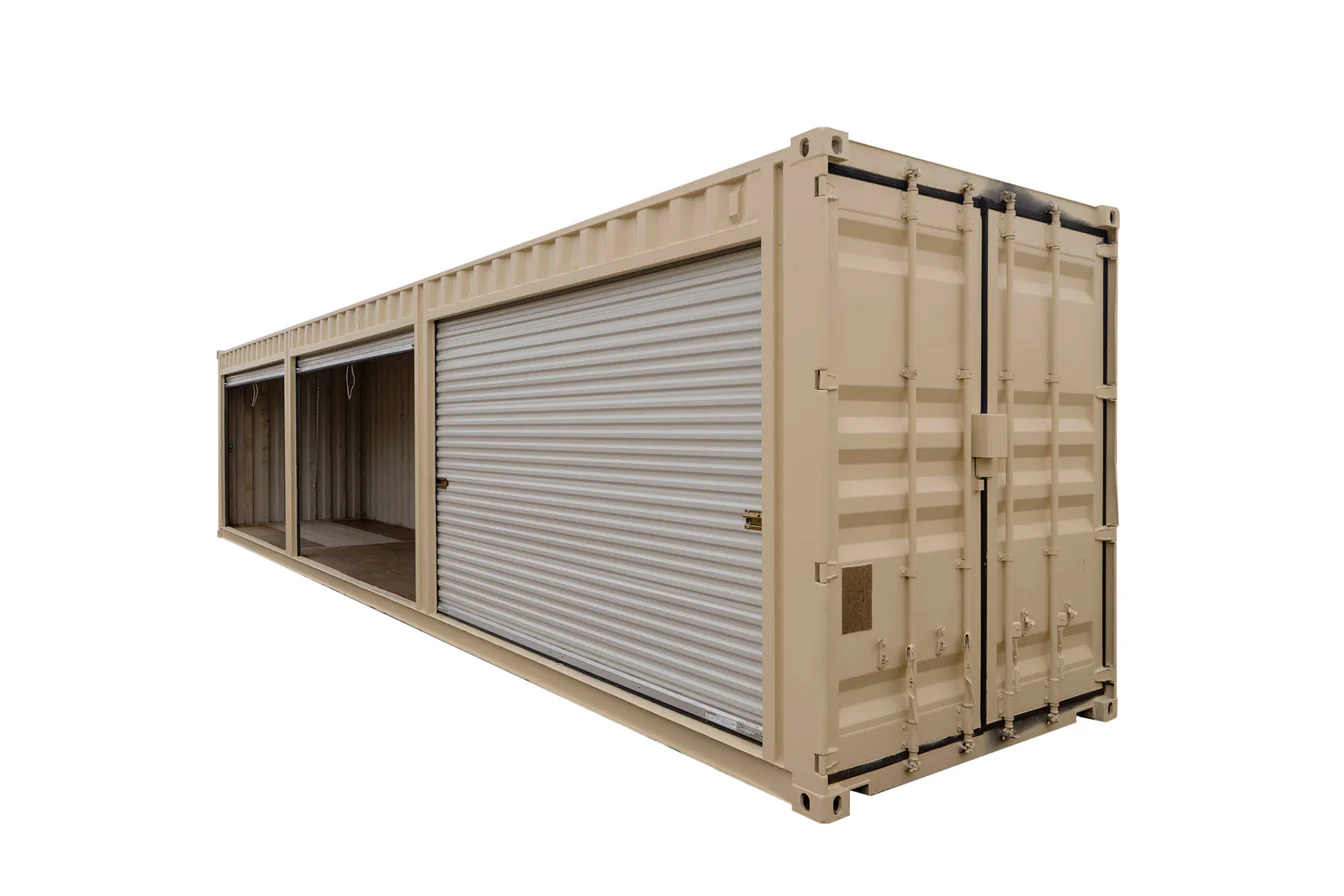

While these doors are not as secure as a steel man door or the original cargo swing doors, they are much easier to get into than the cargo swing doors and are a great solution if needing more and larger access points to your container. We can install multiple roll doors along one side of a container giving you the ability to forklift goods into the side of it, preventing things from getting trapped at the opposite end of the swing doors.

Some of our customers have these installed when young adults or the elderly need regular access to the container and might have more trouble opening the original swing doors.
